100% Original Focus Lens In Laser Machine Parts – Aspheric Collimator Glass Lens – JIABEI Detail:

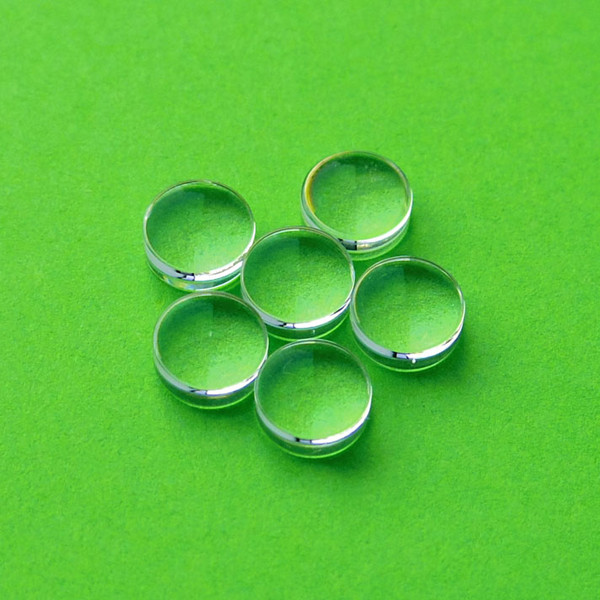

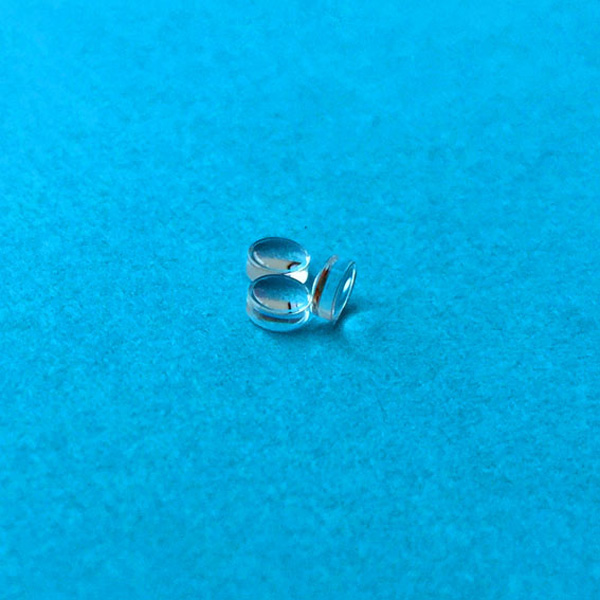

Aspheric Collimator Glass Lens

1. Function: used with laser beam.

Advantages: aspheric glass lens is produced at high temperature, stable quality, laser source alignment consistency, instead of plastic lenses with general lens.

Purpose: laser focus control spot size is suitable for high temperature working place.

2. The single-layer glass lens belongs to the mold type, and all the accurate points are consistent.

3. After coating, the light source of the single-layer glass lens has a transmittance of 97% and the laser very bright The glass coating from 400nm to 1000nm can be use it.

4. The projected line of each machine is uniform and the line width is consistent, less than 1.8mm at 5M.

5. Fast and accurate assembly with laser diode.

Aspheric Collimator Glass Lens(BB01-6.35)

BB01

● Specifications

Laser Wavelength: 430~1000nm±20nm

Effective Focal Length: 9.85mm

Penetration: ≥97%

Effectively Diameter: CA φ5.356/CA φ5.859mm

Outer Diameter: φ6.35mm + 0/-0.02

Thickness: 2.85mm±0.01mm

Packing: Vacuum Packing

BB01
BB01

● Aspheric Collimator Glass Lens(BB05-8)

BB05-8

● Specifications

Laser Wavelength: 400~850nm

Effective Focal Length: 22.827mm

Penetration: >98%(avg.)

Effective Diameter: CA φ7mm

Outer Diameter: φ8mm±0.005

Thickness: 2.97mm±0.005mm

Packing: Vacuum Packing

lens-BB05-6
lens-BB05

● Aspheric Collimator Glass Lens(BB06-4.5)

BB06-4.5-01

● Specifications

Laser Wavelength: 788~828nm

Effective Focal Length: 1.36285mm

Penetration: >98%(avg.)

Effective Diameter: CA φ2.64/CA φ2.94mm

Outer Diameter: φ4.5mm±0.01mm

Thickness: 1.8mm±0.01mm

Packing: Vacuum Packing

lens-BB06-5
lens-BA05-3jpg

● Aspheric Collimator Glass Lens(BA05-3)

Aspheric Collimator Glass Lens(BA05-3)

● Specifications

Laser Wavelength: 400~850nm

Effective Focal Length: 3.77mm

Penetration: >98%(avg.)

Diameter Range: CA  φ2.4mm

Outer Diameter: φ3mm+0/-0.02

Thickness: 1.5mm±0.01mm

Packing: Vacuum Packing

lens-BA05


Product detail pictures:

100% Original Focus Lens In Laser Machine Parts – Aspheric Collimator Glass Lens – JIABEI detail pictures

100% Original Focus Lens In Laser Machine Parts – Aspheric Collimator Glass Lens – JIABEI detail pictures

100% Original Focus Lens In Laser Machine Parts – Aspheric Collimator Glass Lens – JIABEI detail pictures

100% Original Focus Lens In Laser Machine Parts – Aspheric Collimator Glass Lens – JIABEI detail pictures
