VH-3DE Green 12 Lines 3*360° Laser of Electronic Auto-leveling


  • Laser Module: Aspheric collimator lens
  • Laser Wavelength: 520nm±5nm
  • Line width: <1.8mm/5m
  • Accuracy: ±1.0mm/7M
  • Projection angle: horizontal 360 °
  • Self-leveling range: ±3°
  • Brake mode: Magnet
  • Function: 3H
  • Weight: 600g (excl. batteries)
  • Power Supply: 1. 4AA Batteries, 2. Power Bank 4200mAh
  • Working range: Up to 20 M*, 80 M with receiver
  • Operating temperature: -10℃~+50℃
  • Exterior Size: Φ128x138 mm
  • Product Detail

    Product Tags

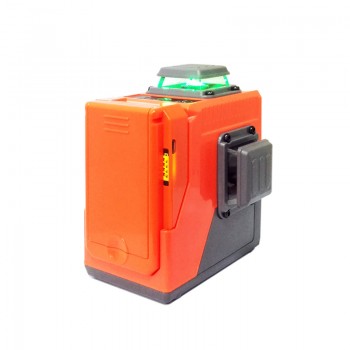

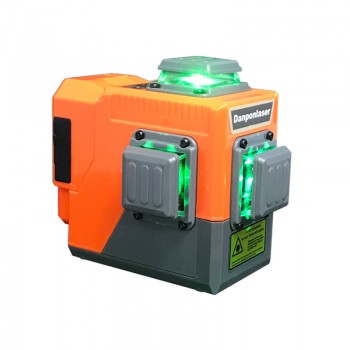

    VH-3DE Green 12 Lines 3*360° Laser of Electronic Auto-leveling


    Danpon VH-3DE laser level with green 3×360° laser electronic auto-leveling; with lithium battery OLED display and wall bracket.High brightness is suitable for indoor and outdoor construction.All laser modules are focused and assembled with aspheric glass lens.

    ● Features

    1. 3x360° Laser auto-leveling .

    2. Supports 2 power supply modes.

    3.The laser line no gap of projection.

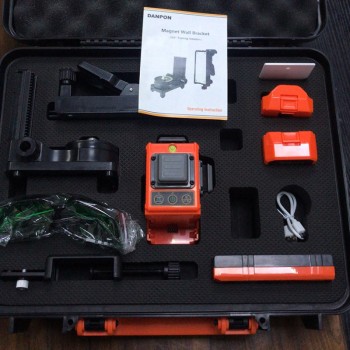

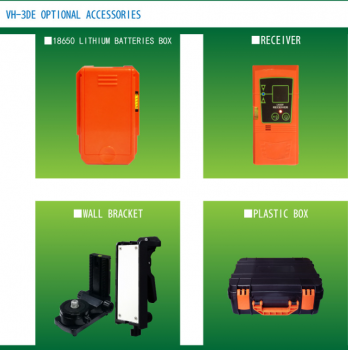

    ● Optional Products

    1. OLEG Multi-function Display Power Bank

    2.AA Batteries

    3. Green Receiver & Clamp

    4. Wall Bracket

    5.USB Cable

    6.Plastic Box


    Outdoor Construction,Please Use Receiver.The receiving distance is up to 80 meters


    Laser level use for indoor decoration indicator line, casting light at a distance of 20 M, suitable for extensive site use, such as ceiling construction, water and electricity installation and use in partition board construction, very accurate for aluminum doors and Windows installation.

    The bottom of the instrument is attached with 5/8 thread, which can be adjusted with tripod and wall bracket
