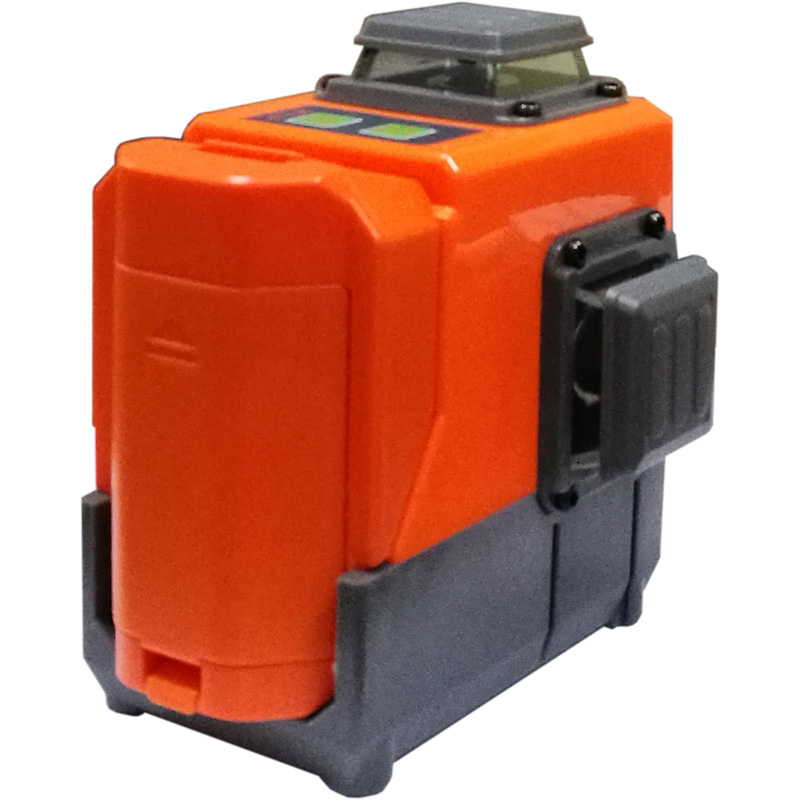

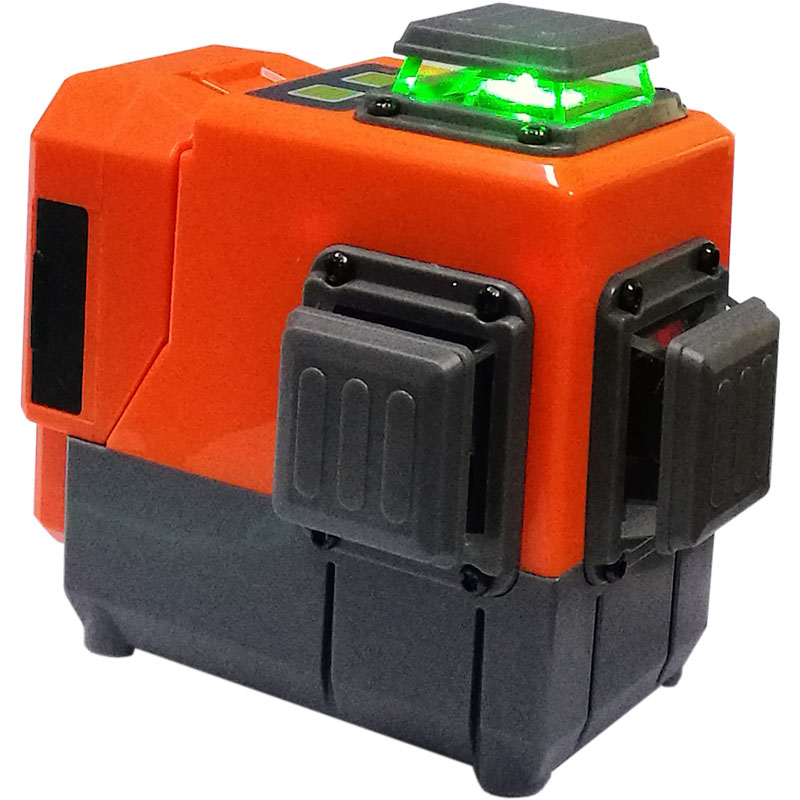

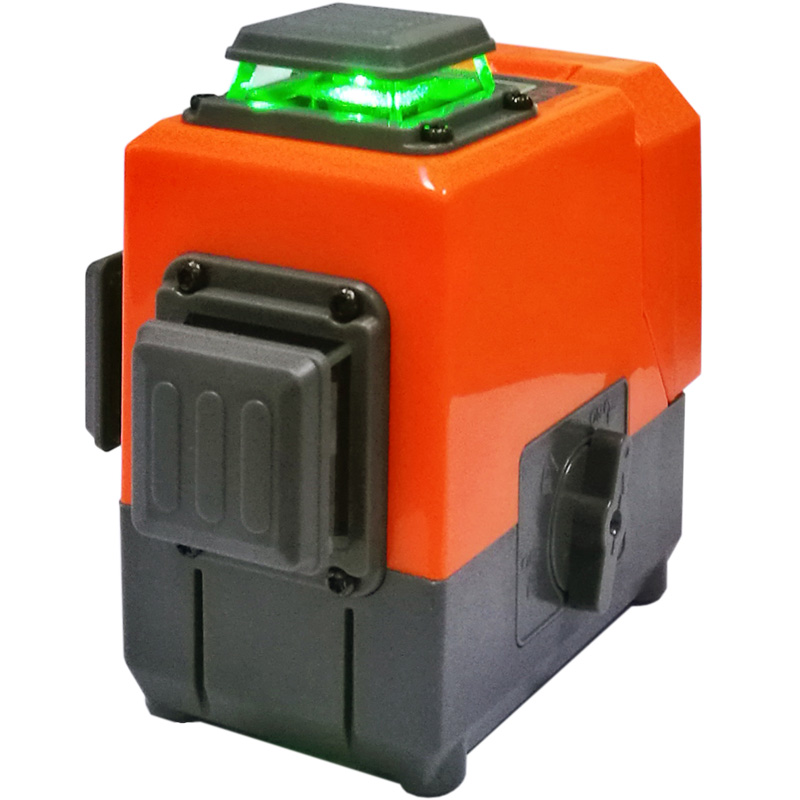

VH-3D Green 12 Lines 360° Vertical & Horizontal Cross


  • Laser Module: Aspheric collimator lens
  • Laser Wavelength: 520nm±5nm
  • Line width: <1.8mm/5m
  • Accuracy: ±1.0mm/5M
  • Projection angle: Horizontal 360 ° Vertical 360°
  • Self-leveling range: ±3°
  • Brake mode: Magnet
  • Function: 8V/4H
  • Weight: 453g (excl. batteries)
  • Power Supply: 1. 4AA Batteries, 2. Power Bank 4200mAh
  • Working range: Up to 20 M*, 80 M with receiver
  • Operating temperature: -10℃~+50℃
  • Exterior Size: 124x83x116mm
  • Product Detail

    Product Tags

    VH-3D Green 12 Lines 360° Vertical & Horizontal Cross


    ● Features

    1. 360 degree horizontal & vertical, 12 lines 3D green beam cross line laser level.

    2. Self-leveling, light flashing when out of range.

    ● Optional Products

    1. 4200mAh Power Bank

    2. Green Receiver & Clamp

    3. Wall Bracket

    4. 1.2M Tripod

    ● Includes

    1. Case

    2. Laser level

    3. Battery box

    4. Glasses

    5. Instruction Manual


    1. Laser has three 360-degree modules assembled into 12 lines, and each 360-degree module project c four green line

    2. The laser beam is manufactured with the wavelength of Osram laser diode at 520nm, and the aspheric glass lens focusing is all designed from danponlaser companythe line width is consistent, less than 1.8mm at 5M. The laser line is very thin and has no stray light and High temperature resistance, will not have thermal expansion and cold shrinkage, resulting in the problem of laser line became thicker

    3. This laser belongs to the pendulum leveling system, and the accuracy range is within ±3.5°.When the device is used over the center of leveling range, the laser line will be continue to flash.

    4. The working range of the laser can be up to 25 meters, depending on the lighting situation in the working area. 5 The Laser can be used in sunlight outdoors with a 300Hz receiver to receive green beam at a distance of 80M

    5. This laser has two power supply modes, including a power bank supply with an OLED display and 4 AA batteries

    6. This product, from parts to housing products finished, it is all designed by danponlaser company, and we accept ODM and OEM production and design, including laser green or red module.

    7. Our company specializes in the production of laser series products, has a strong R & D production, design, management team and perfect after-sales service system, has two production workshops and R & D center

    Founded in 2003, danponlaser is located in qingpu district, Shanghai, with convenient transportation.


    Q & A

    1. Is your company a trading company or a factory?

    We are a factory.

    2. Delivery time?

    If we have stock, we can deliver in 3 days.

    3. Does your company accept customization?

    Yes, ODM and  OEM

    4. Do you have a warranty for your products?

    Yes, we offer a one-year warranty.

    Our policy is: if there is a quality problem, we can teach by video and provide parts repair.

    5. IP54 protection (dust and splash)?
