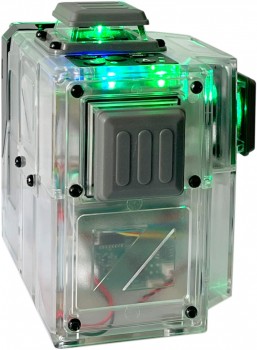

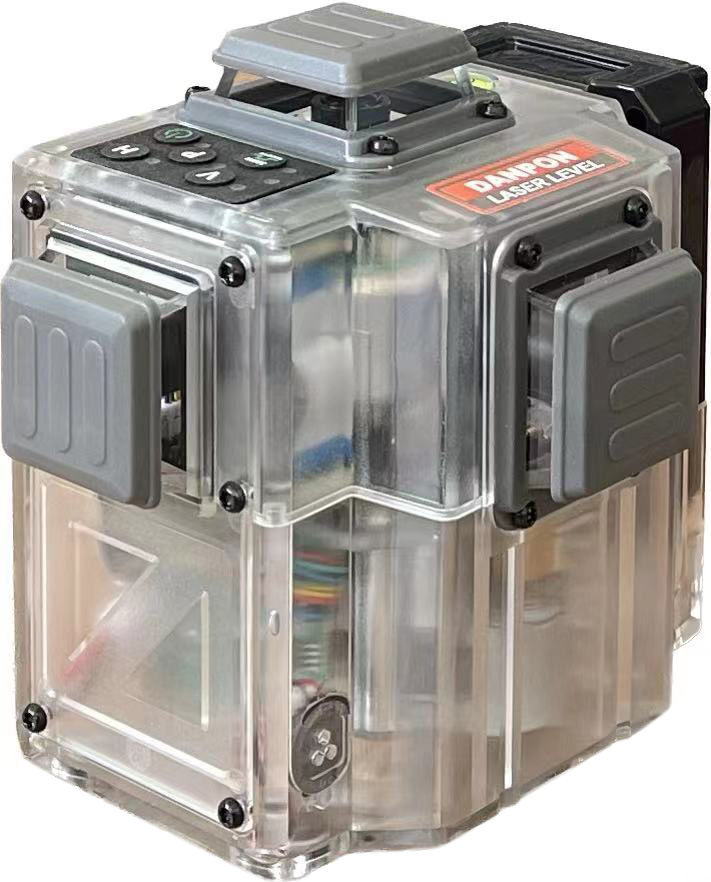

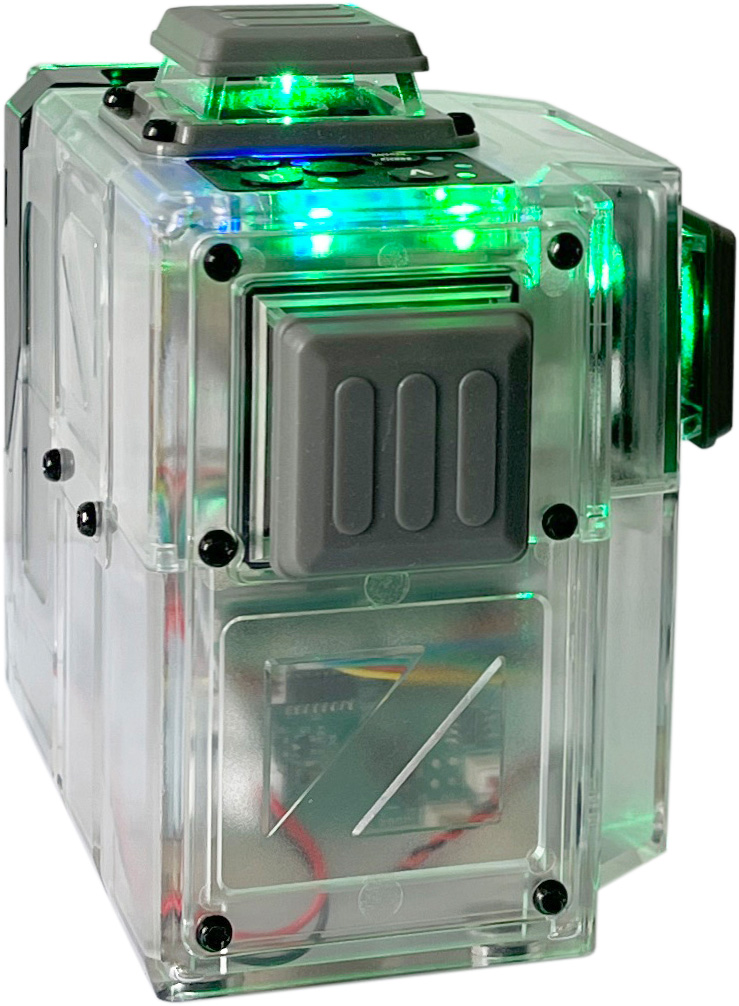

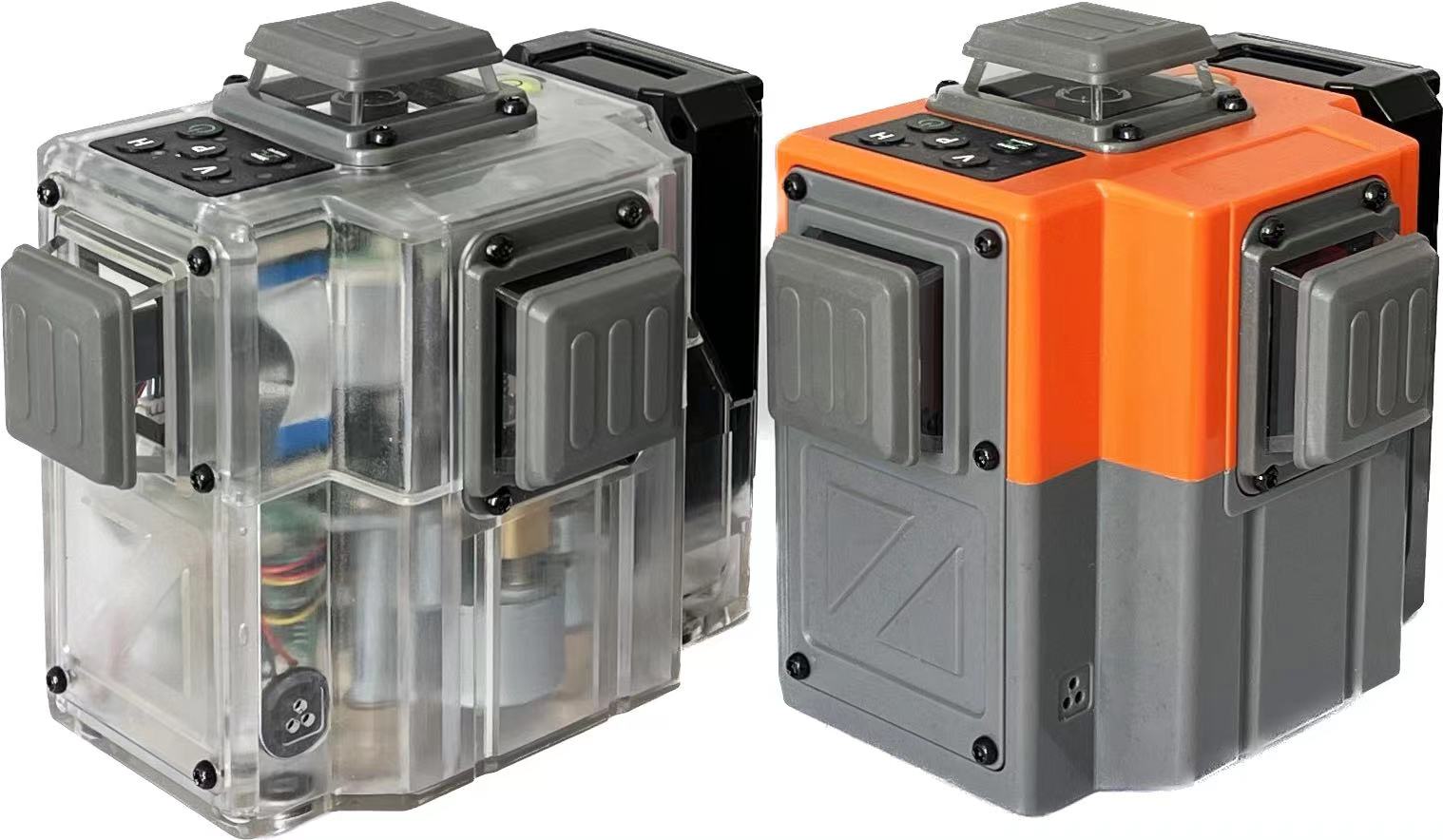

VH-3DEX Green line Red line Electronic Auto-leveling Laser Level

Specifications:

Laser level use for indoor decoration indicator line, casting light at a distance of 20 M, suitable for extensive site use, such as ceiling construction, water and electricity installation and use in partition board construction, very accurate for aluminum doors and Windows installation.



  • Laser Module: VH-3DEX
  • Lens type: Aspheric collimator glass lens
  • Wavelength: 650nm/520nm
  • Line width: 1.8mm/5m
  • Accuracy: +2.0mm at 10m
  • Precision of angle: 90°+0.02°
  • Size: 136×117×127nm

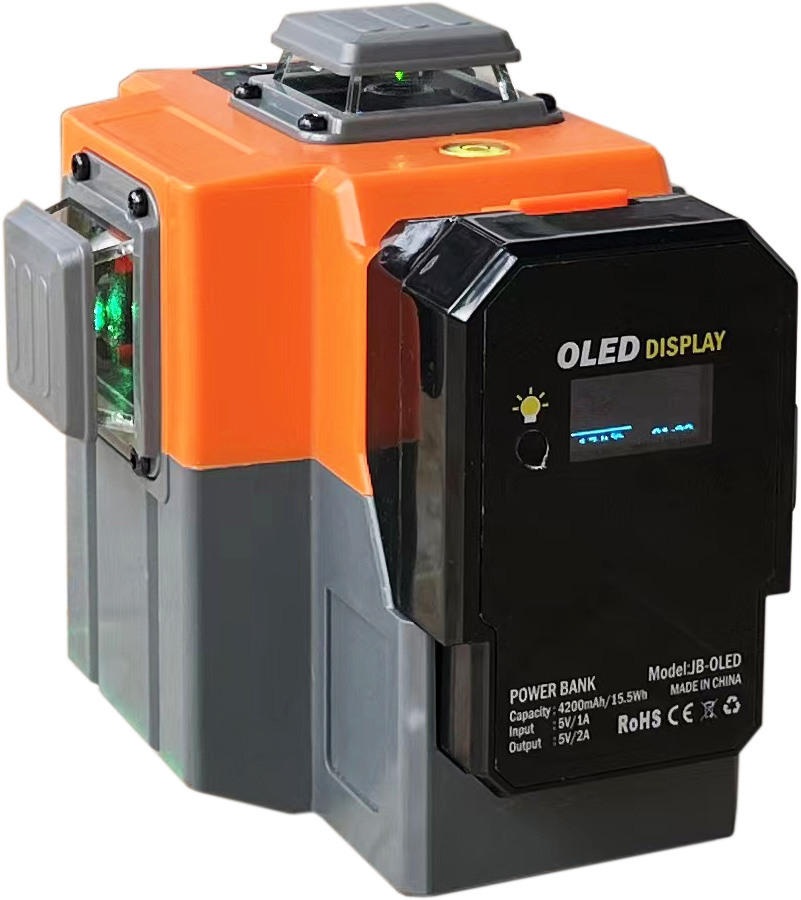

  • Power supply: 18650 batteries/OLED 4200mAh Power Bank
  • Function: 4Horizontal lines ,8Vertical lines
  • Self-levelling range: 土4°
  • Working range: Up to 20 M*, 80 M with receiver
  • Product Detail

    Product Tags

    Laser level use for indoor decoration indicator line, casting light at a distance of 20 M, suitable for extensive site use, such as ceiling construction, water and electricity installation and use in partition board construction, very accurate for aluminum doors and Windows installation.

    The bottom of the instrument is attached with 5/8 thread, which can be adjusted with tripod and wall bracket

    Assume full accountability to satisfy all demands of our consumers; reach ongoing advancements by endorsing the expansion of our purchasers; come to be the final permanent cooperative partner of clients and maximize the interests of clientele for Green Beam Laser LevelLaser LevelSelf-leveling Laser Level, Our company is an international supplier on this kind of merchandise. We offer an amazing selection of high-quality products. Our goal is to delight you with our distinctive collection of mindful products while providing value and excellent service. Our mission is simple: To provide the best products and service to our customers at the lowest prices possible.

     Product usage

    1. Leveling: Laser levels are commonly used to establish a level reference line for various tasks. They help ensure that surfaces, such as floors, ceilings, or countertops, are perfectly horizontal. This is particularly useful for tile installation, framing, or general construction work.
    2. Alignment: Laser levels assist in aligning objects accurately. They provide a straight and level reference line or plane, making it easier to align windows, doors, cabinets, shelves, or any other objects that require precise alignment.
    3. Plumbing: Laser levels can be used to check and ensure vertical alignment or plumbness. They help in aligning pipes, posts, columns, or other structures that need to be perfectly vertical.
    4. Transferring Reference Points: Laser levels can project a beam across a long distance, allowing you to transfer reference points or lines from one location to another. This is helpful when marking positions for electrical outlets, light fixtures, or any other elements that need to be aligned.
    5. Drop Ceilings and Drywall: Laser levels are commonly used in the installation of drop ceilings and drywall. They assist in achieving a consistent and level installation by projecting reference lines on the walls or ceiling for proper alignment.
    6. Landscaping and Grading: Laser levels with a rotary function are useful in landscaping and grading tasks. They help establish accurate slope and grade levels for various outdoor projects, such as leveling a patio, building a retaining wall, or preparing the ground for proper drainage.
    7. Surveying: Laser levels are used by land surveyors to establish precise reference lines or points for measuring elevations and contours on a piece of land.
